Sleep does more than leave you feeling rested the next morning. While you sleep, your brain activates a waste removal network known as the glymphatic system, flushing away metabolic byproducts that accumulate during the day. Scientists believe this nightly cleanup process could play an important role in protecting against neurodegenerative diseases such as Alzheimer’s, but studying it has proven extraordinarily difficult. Now, researchers from Georgia Tech and Seoul National University have developed a soft wearable forehead patch that could allow scientists to monitor this process while people sleep in their own beds.
Resembling a Band-Aid, the experimental device is less than a centimeter thick, with a soft silicone body that adheres comfortably to the forehead. It operates wirelessly from a rechargeable battery to prevent any discomfort or inconvenience. Unlike MRI scanners, which are expensive, noisy, and require patients to remain motionless, the patch is designed for repeated overnight use at home, allowing researchers to collect data over many nights instead of a single laboratory sleep study.
Rather than attempting to observe cerebrospinal fluid directly, the researchers take a different approach. The patch uses near-infrared spectroscopy, shining three wavelengths of light into the forehead. Two wavelengths measure oxygenated and deoxygenated hemoglobin, while a third is absorbed primarily by water. By analyzing how much light is scattered back to an integrated photodetector, the system estimates changes in total brain water. If water levels rise without a corresponding increase in blood volume, it could indicate that cerebrospinal fluid is moving through the brain as the glymphatic system carries away waste products.
The hardware includes flexible printed circuits containing multiple LEDs, a multispectral photodetector, Bluetooth Low Energy communications, and a rechargeable 110 mAh LiPo battery. Operating continuously, the prototype consumes roughly 70 to 75 milliwatts, providing approximately 5.5 hours of runtime under the current design. Mechanical simulations showed the flexible electronics remain below material stress limits even when bent to match the contours of the forehead, while thermal testing demonstrated that skin temperatures stay below the accepted 41°C safety threshold during extended operation.
The team validated the device through several physiological experiments before using it during sleep. Tests involving alternating exercise and rest, along with controlled breath-holding exercises, produced repeatable changes in measured brain water dynamics, suggesting the optical system is sensitive to meaningful physiological changes. Monte Carlo simulations further indicated that enough light penetrates beyond the skull to sample cortical brain tissue, supporting the feasibility of monitoring changes beneath the surface.
When used overnight, the wearable recorded continuous changes in brain water that varied with different sleep stages. Those measurements followed patterns consistent with previous research suggesting glymphatic activity is greater during non-REM sleep and reduced during REM sleep. The study also identified physiological rhythms associated with respiration, heart rate, and slow-wave sleep, demonstrating that the patch can capture multiple aspects of sleep physiology simultaneously. However, the researchers are careful to note that the device measures brain water indirectly rather than cerebrospinal fluid itself, and additional studies will be needed to establish how closely those measurements track true glymphatic activity.

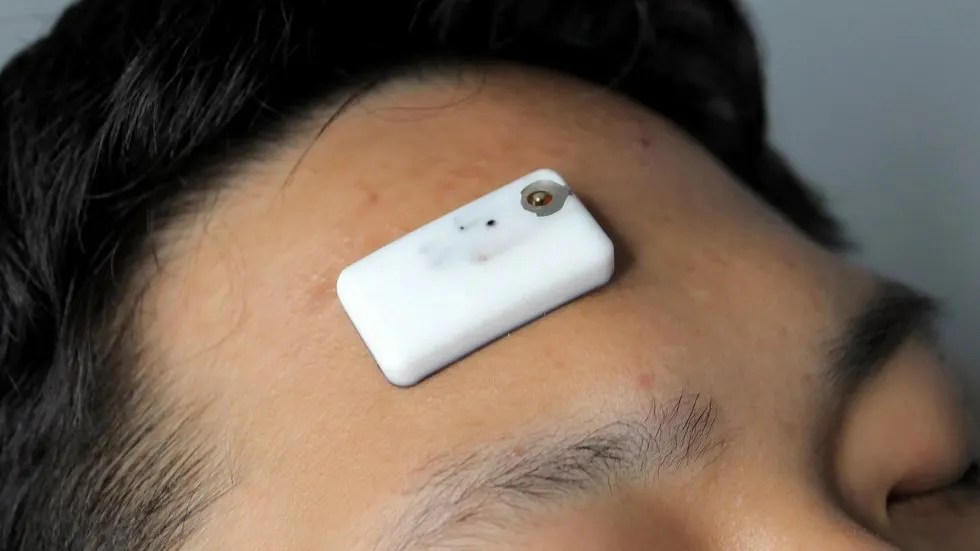

If future studies confirm the relationship, the technology could provide researchers with an accessible way to study brain fluid dynamics over weeks or months instead of isolated lab sessions. Beyond advancing Alzheimer’s research, the platform could eventually become part of next-generation wearable health devices for monitoring sleep quality, neurological disorders, and other conditions influenced by the brain’s nightly maintenance cycle.This patch unobtrusively monitors brain health (📷: J. Kwon et al.)
The device is thin and flexible (📷: J. Kwon et al.)
A closer look at the hardware (📷: J. Kwon et al.)
