AI has become quite good at writing code, answering questions, and solving complex problems. But when it comes to deploying AI algorithms onto tiny microcontrollers, even the most advanced models have been hitting a wall. This is because it is not just about writing code — strict real-world constraints involving memory, power consumption, temperature, and hardware compatibility have to be met as well. Now, researchers have developed a system called Embedded Arena that gives AI agents direct access to physical hardware, allowing them to learn from real measurements instead of relying solely on imperfect simulations.
Traditionally, getting an AI model to run on a resource-constrained microcontroller has taken a lot of effort. Engineers can spend weeks manually balancing model size, memory usage, power draw, and thermal limits while trying to preserve as much accuracy as possible. Every microcontroller family presents a different set of hardware capabilities and restrictions, forcing much of that optimization work to be repeated from scratch whenever a new target platform is used.
Embedded Arena tackles this problem with a hardware-in-the-loop (HIL) approach. Instead of relying entirely on software simulations, an AI agent repeatedly generates firmware, compiles it, flashes it onto a real microcontroller, measures the results, and then uses those measurements to improve the next iteration. The feedback includes practical information such as power consumption, temperature, resource utilization, and deployment success, giving the agent a much clearer picture of how its changes affect the physical device.
The team found that this real-world feedback makes a big difference. Frontier AI models, including Claude Opus 4.7 and Gemini 3.1 Pro, were unable to complete a successful deployment when they only had access to software-based information, resulting in a 0% success rate. Once hardware measurements were incorporated into the optimization loop, the agent successfully deployed working solutions within three iterations and was able to outperform human experts after seven iterations. On the most difficult tasks, deployment success rates increased from 0% to 80%.
During testing, it was found that the system compressed computer vision models by a factor of 250 while sacrificing less than 3.3% accuracy. Audio models were compressed 400× while keeping feature error rates below 6%. At the same time, the optimized firmware reduced power consumption by more than 58% and lowered peak operating temperatures by over 40%, making it practical to run sophisticated AI workloads on extremely constrained hardware, including battery-free devices powered entirely by small solar cells.

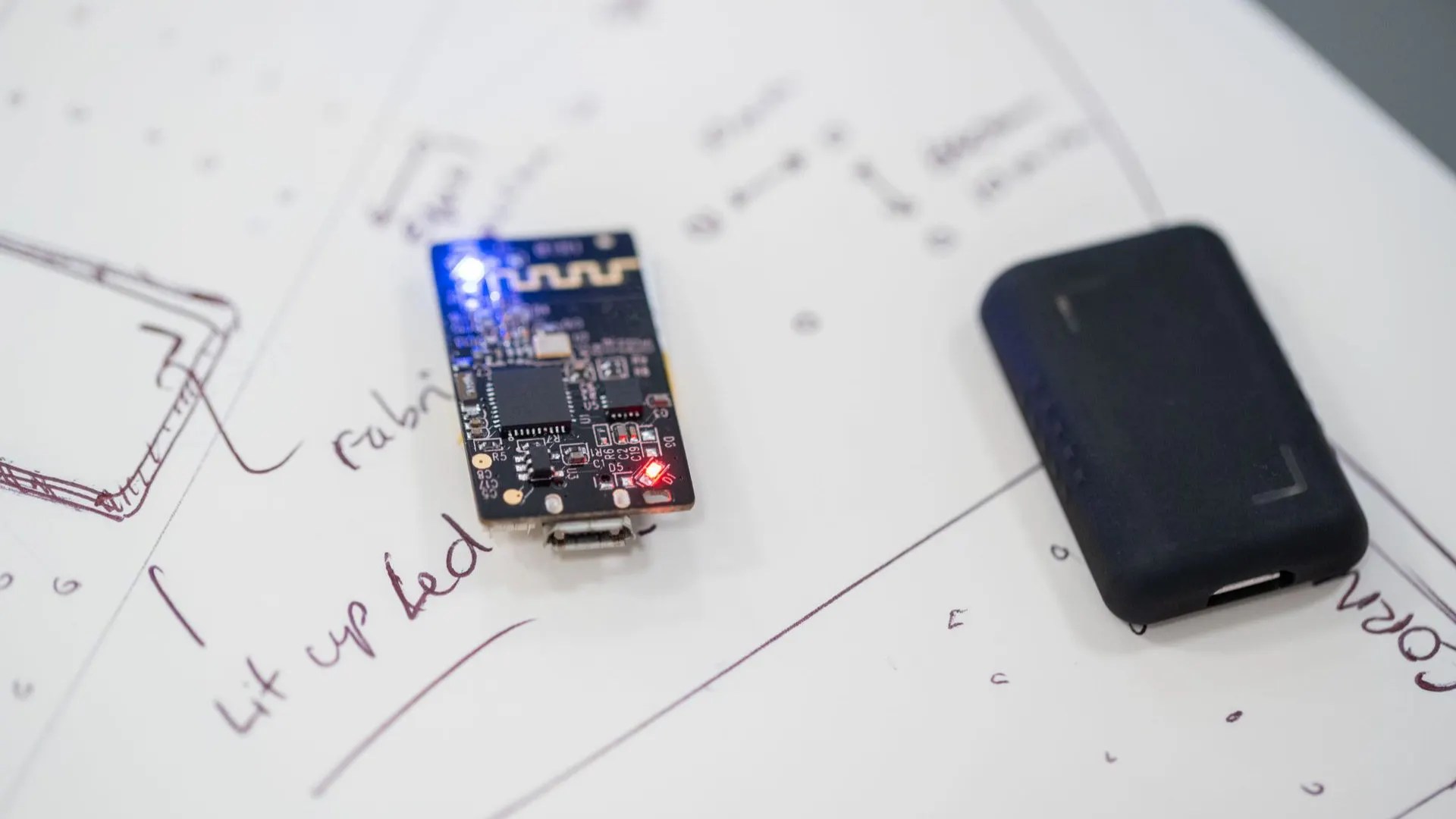

To demonstrate the system in practice, the team built two real-world applications. One is an ultra-low-power, solar-powered wildlife camera that detects elk with 96.7% accuracy while consuming less than 7 milliwatts of power. The other is a wearable device for child development research that performs on-device phonetic transcription, eliminating the need to send sensitive speech data to the cloud for processing.
By turning hardware optimization into an iterative process driven by measurements from the physical device itself, the platform removes much of the trial-and-error that has traditionally taken up lots of development time. As more embedded devices gain AI acceleration capabilities, tools like this could make deploying efficient machine learning models on tiny microcontrollers significantly faster and easier than ever before.
Models are iteratively optimized using hardware feedback (📷: Z. Zhang et al.)
The system outperformed human experts (📷: Z. Zhang et al.)
